Filter Water Separators - Models VCS & HCS (Cat. M & M100)
- Vertical & horizontal configurations available
- Designed to filter solids and separate water from fuels
- Easy service and reduced maintenance costs
- Qualified to 5th Edition of EI 1581, Category M & M100, Type S
- EI 1596 Design & Construction
- Built to ASME Code, Section VIII, stamped and certified or "CE" marked
Models VCS & HCS (Military)
5th Edition EI 1581, Category M & M100, Type S & S-LW Qualified

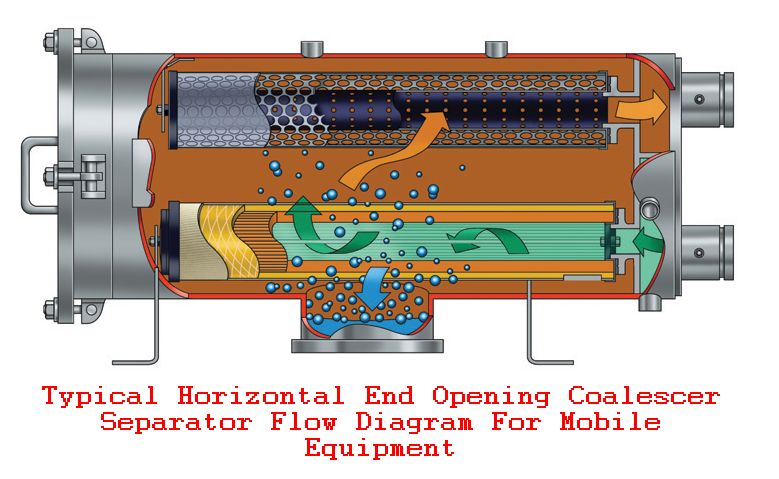

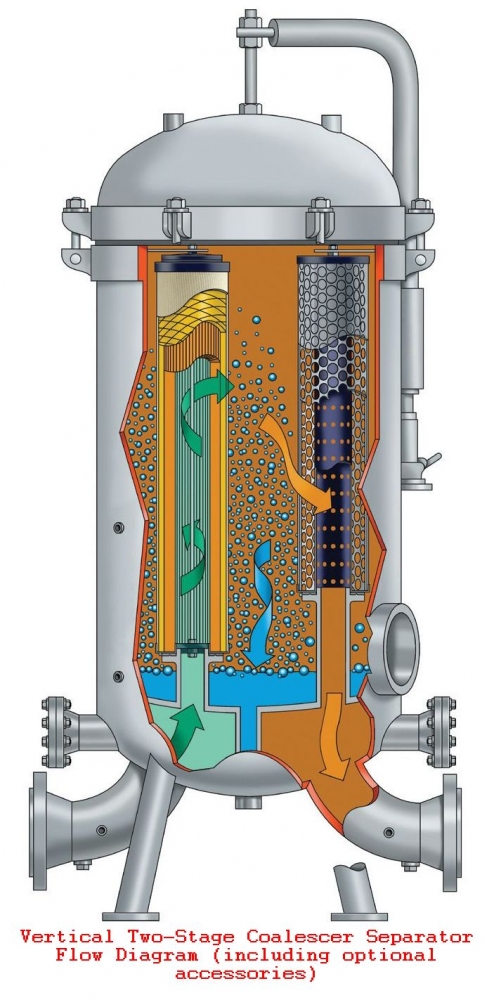

PECOFacet models VCS & HCS two-stage coalescer separator housings are mechanical devices designed to filter solids and separate two immiscible liquids. They have been qualified after full-scale, witnessed testing to the 5th Edition of EI 1581, Category M & M100, Type S & S-LW performance specifications.
Category M & M100 coalescer separator housings are for military aviation fuel. Type S qualifications can be used at all filtration points in an aviation fueling system. Type S is meant to be used at filtration points where significant levels of water and dirt in the product can be expected. Type S-LW is meant to be used for mobile applications where minimum amounts of water and dirt in the product are expected.
Standard Housing Design
- Welded carbon steel construction, other materials available on request
- EI 1596 Design & Construction
- Built to ASME Code, Section VIII, stamped and certified or "CE" marked
- Choice of rod or screw base coalescer cartridge mounting styles
- Knife edge cartridge mounting seals
- Design pressure: for 150 psi (10.5 kg/cm²) @ 250ºF (121ºC) -other design pressures available on request
- Headlift furnished in 18” OD and larger
- Inlet, outlet and drain connections permanently marked
- Swing bolt head closures
- Buna-N o-ring closure seal
- Spider support plate
- Sloping cartridge plate
- Automatic air eliminator with check valve
