Pecofacet

MODEL FGS

MODEL FGS
  • Spin-on filter
  • Meets API 1583 effluent requirements
  • Removes free and emulsified water
  • Works in the presence of surfactants and fuel additives



Download

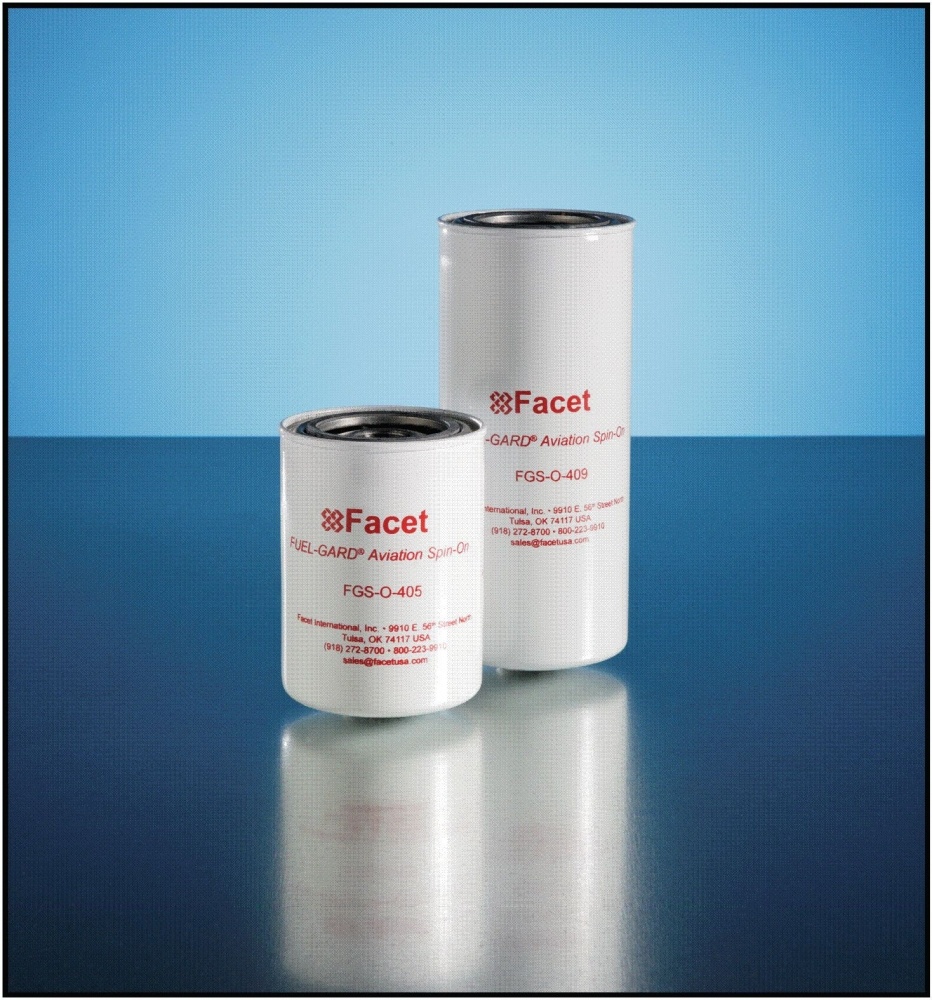

Fuel-Gard® Spin-On Filters

Model FGS

PECOFacet’s aviation spin-on filters are designed to meet EI 1583 effluent requirements and perform three jobs to give you clean, dry fuel. They absorb free and emulsified water, remove ultra-fine solids even when surfactants and fuel additives are present, and shut down system flow when hit with a localized slug of water.

Benefits

  • Removes free and emulsified water
  • Removes ultra-fine solids
  • Designed to shut down system flow under slug conditions

Standard Design Features

  • Max. recommended operating temperature: 240ºF (115ºC)
  • Initial differential pressure: 2 psi (0.14 kg/cm²) or less
  • Design collapse pressure: 50 psi (3.45 kg/cm²)
  • Flow direction: outside to in
  • Flow rate design for 5.5” (140mm) length filter: 13 gpm (49 lpm)
  • Flow rate design for 8.5” (216mm) length filter: 15 gpm (57 lpm
