Model CIF

Model CIF

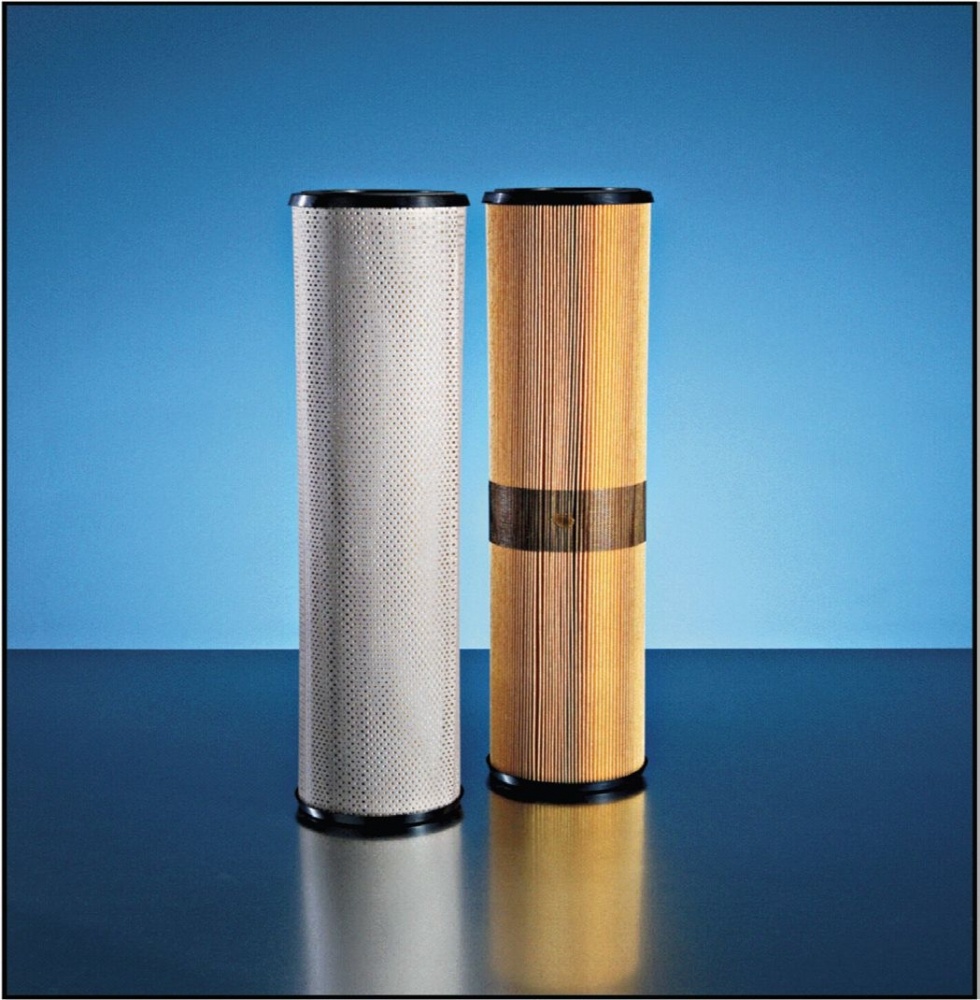

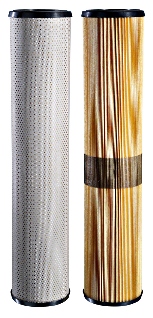

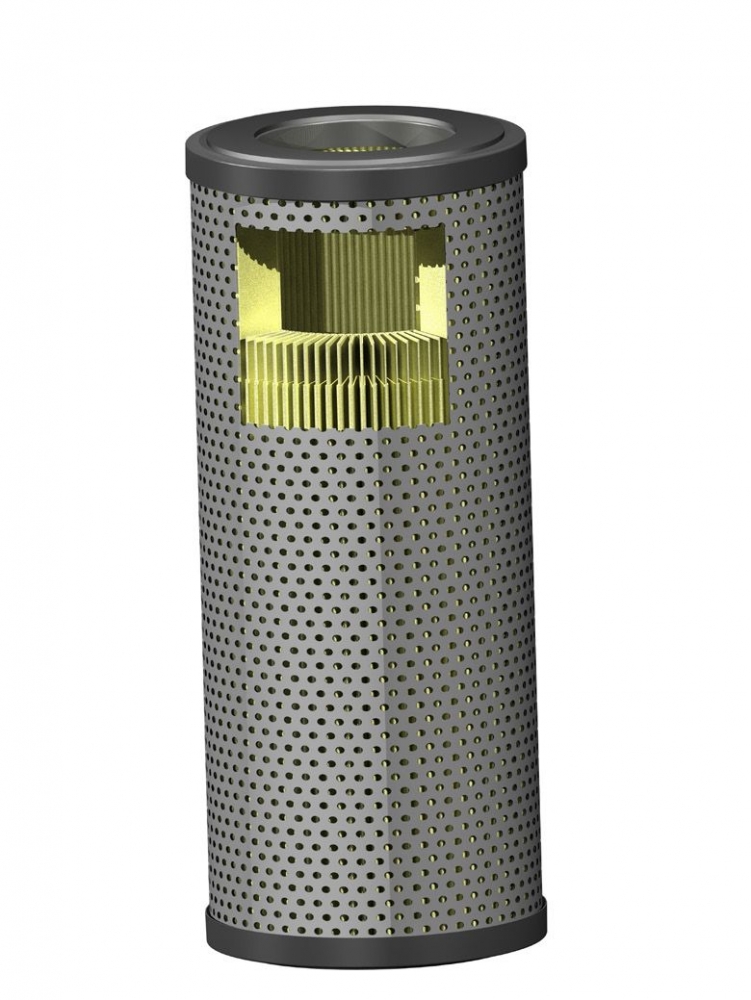

  • High efficiency pleated paper filter cartridges
  • Micron ratings from 0.5 to 75
  • 6” (152.4mm) outside diameter, one piece cartridges available in four nominal lengths
  • Designed to fit PECOFacet M housings and MS SuperFlex housings

High efficiency pleated paper filter cartridges designed to effectively remove solid contaminants from: · Gasoline · Coolants · Kerosene · Rolling Oils · Diesel · Jet Fuel · AV-Gas · Industrial Water · Solvents (Stoddard and Ketone Based)

The filtration of potable liquids is not recommended with this series of filter cartridges. These cartridges are constructed to meet the demanding requirements of the industrial filter market. Media with high efficiency throughout the life of the cartridge is available in ratings of 0.5 to 25 micron. We recommend replacing cartridges when the differential pressure reaches 15 psi. Effective life above 15 psi is minimal.

All cartridges are 6" (152 mm) outside diameter. To simplify maintenance, we offer one piece cartridges in four lengths: single-length of 12½" (370 mm), double-length of 28¾" (730 mm), triple-length of 43¼" (1100 mm) and quadruple-length of 57¾" (1465 mm). One quadruple length cartridge replaces four single-length.


  • Crushable - can reduce your disposal volume approx. 80%
  • No metal components
  • Incinerable
  • Cartridges alignment is executed at top of center tube
  • Lightweight - contributes to reducing change out time
  • Same performance and efficiency as M Series high efficiency pleated paper filter cartridges

Standard Design Features

  • Max. recommended operating temperature: 240°F (115°C)
  • pH Range from 5 To 9
  • Initial differential pressure: 2 psi (.14 kg/cm²) or less
  • Design collapse pressure: 75 psi (5.25 kg/cm²)
  • Flow direction: outside to in
