Single-Stage Coalescer - Model HP

Single-Stage Coalescer - Model HP
  • Designed to remove gross amounts of water and solids from hydrocarbons
  • No internal moving parts, reducing maintenance costs
  • Designed for 150 psi (10.5 kg/cm²) @ 250ºF (121ºC)
  • EI 1596 Design & Construction
  • Built to ASME Code, Section VIII, stamped and certified or "CE" marked
Download

Model HP

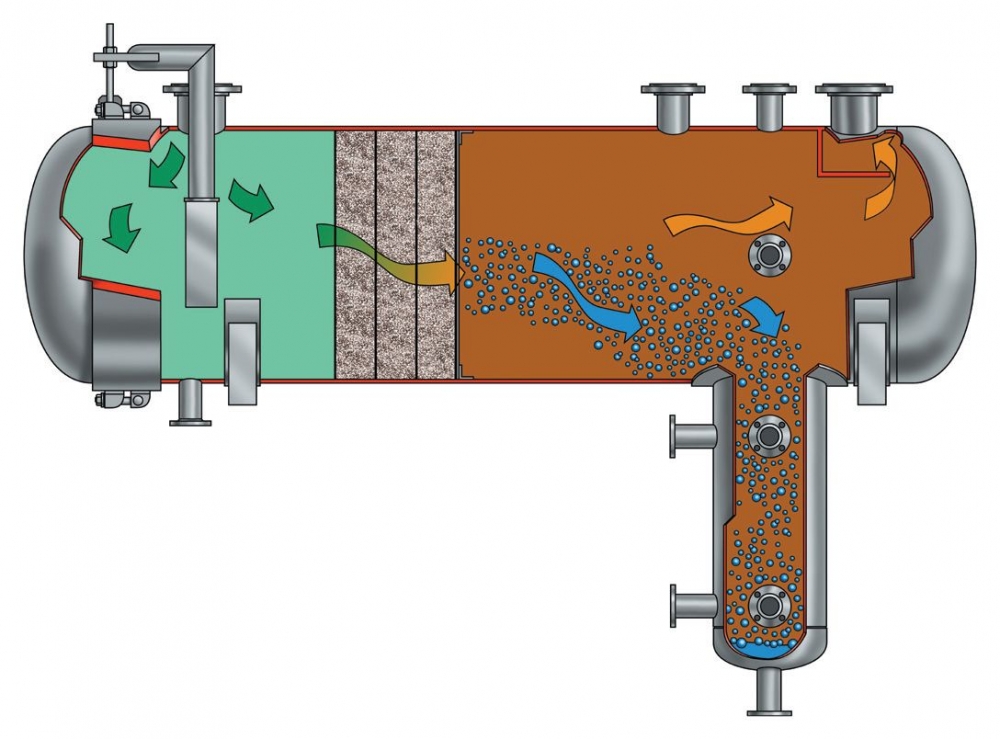

PECOFacet model HP single-stage coalescers use wafer repacks to remove gross amounts of water and solids from hydrocarbons. They are available in several standard sizes to accommodate flows from 10 to 2000 gpm (38 to 7570 lpm). They provide protection to filtration systems from gross amounts of water and solids that are commonly carried through inbound transport pipelines.

Model HP housings offer an option of using coalescer cartridges for more efficient solids separation and liquid-liquid water separation. Use of an adaptor kit permits returning to the use of repacks at any time. Model HP housings have no internal moving parts and are designed for easy servicing, thereby reducing maintenance costs. Each housing is manufactured with quality workmanship and materials to give long-lasting and dependable service.

Standard Housing Design

  • EI 1596 Design & Construction
  • Built to ASME Code, Section VIII, stamped and certified or "CE" marked
  • Designed for 150 psi (10.5 kg/cm²) @ 250ºF (121ºC)
  • Housing Closure:
    • Blind cover on housings less than 14" (356 mm) OD
    • Swing bolt closure on housings 14" (356 mm) OD and larger
  • Housing Covers:
    • Removable on housing up to 14" (356 mm) OD
    • Hinged on housings 14" (356 mm) thru 36" (914 mm) OD
    • Rotating davits on housings 42" (1067 mm) OD and larger
