Pecofacet

Model FG-2

Model FG-2
  • Qualified to 6th Edition of EI 1583
  • Multi-layered media for increased solids holding, water removal and shutdown protection
  • New conductive end caps with anti-static properties
  • Structurally withstands a minimum of 174 psi (12 kg/cm²)
  • Designed to fit PECOFacet HFG & FGH 2" monitor housings
Download

Monitor Cartridges
6th Edition EI 1583 Qualified

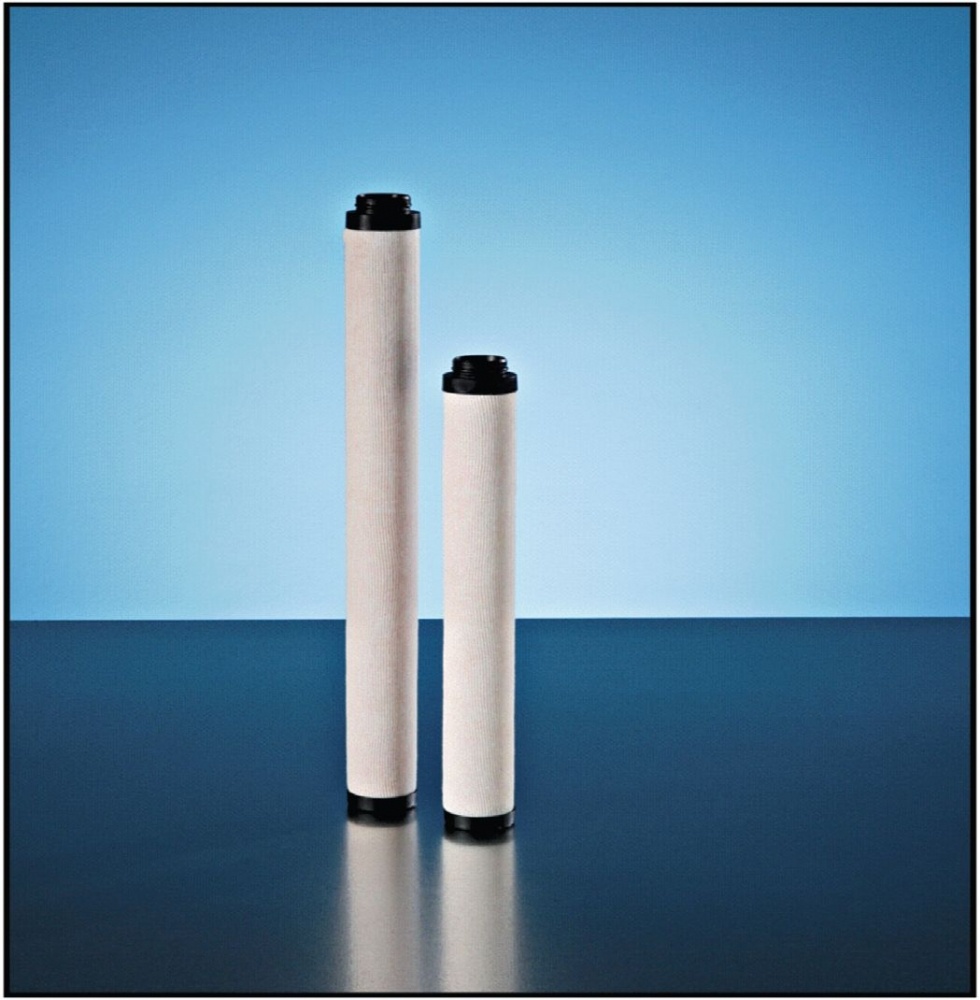

The PECOFacet 2" Model FG Fuel-Gard® monitor cartridges perform three jobs - they absorb free and emulsified water, remove ultra-fine solids and shut down system flow when hit with a localized slug of water, giving you clean, dry fuel. The Model FG Fuel-Gard® monitor cartridges are designed to flow from the outside to inside at a rate of 1 gallon (3.79 liters) per inch of length.

Fuel-Gard® monitor cartridges meet the 6th Edition of EI 1583 Specifications and Qualification Procedures - Aviation Fuel Filter Monitors with Absorbent Type Elements.

Each Model FG Fuel-Gard® monitor cartridge is constructed of various water absorbent media, plus fine filtration layers wrapped around a molded center tube for balanced flow and structural strength - all encased in a protective outer sock material. The end cap material is of injection molded, glass-filled nylon which provides superior strength and ease of maintenance. This material gives excellent support for the o-ring on the mounting/adapter end.

  • Tested and qualified to meet the 6th Edition of EI 1583 Specifications and Qualification Procedures - Aviation Fuel Filter Monitors With Absorbent Type Elements
  • Multi-layered media for increased solids holding, water removal and shutdown protection
  • New conductive end caps with anti-static properties which greatly reduce the possibility of static discharge during the fueling process
  • Structurally withstands a minimum of 174 psi (12 kg/cm²)
  • Not adversely affected by exposure to temperatures varying from -65ºF (-54ºC) to 160ºF (71ºC)
